Introduction

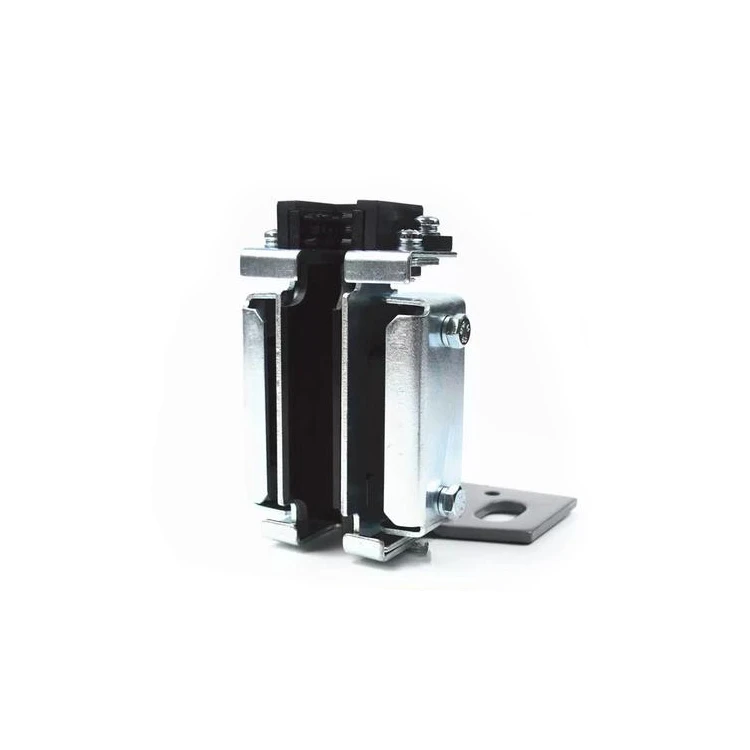

The OX-029Y Car Guide Shoe is a precision sliding component that ensures stable and accurate vertical movement of the elevator car along the guide rail. It reduces vibration, noise, and mechanical wear, improving ride comfort while extending the overall service life of the elevator system.
Parameters and Specifications
|
Parameters |
unit |
OX-029Y |
|
Applicable speed |
m/s |
≤1.0 |
|
Rated load |
Kg |
≤1350 |
|
Forward pressure |
N |
≤1050 |
|
Lateral pressure |
N |
≤750 |
|
Matching guide rail |
mm |
10/16 |
|
Matching shoe lining |
/ |
Special guide shoes |
Features
Vibration & Noise Reduction
Designed for close contact with the guide rails to minimize operational vibration and noise for improved ride comfort.
Long-Lasting Durability
Constructed from high-grade, wear-resistant materials with corrosion protection to withstand long-term use.
Easy Installation & Replacement
Simple structural design allows for quick fitting and liner replacement, reducing maintenance time and cost.
Handles Heavy Loads Easily
Engineered to support typical elevator loads and pressures (e.g., ≤1350 kg, ≤1050 N forward pressure).
Customization Options
Material Selection
Choose different steel or lining materials to suit specific load, wear, or environmental requirements.
Logo Personalization
Custom branding or company logos can be added for identification or specification purposes.
Outer Packaging Variants
Tailored packaging formats available to meet shipping preferences or project needs.
Guide Rail Fitment Sizes
Available to match various guide rail widths and elevator standards for proper compatibility.
Rated Load/Pressure Tuning
Performance parameters (e.g., load capacity, forward/lateral pressures) can be aligned with different elevator system demands.
